Cut and Fill Analysis for BIM-Based Earthworks Planning

Cut and fill analysis compares existing ground with proposed design levels to identify where material must be excavated, added, or replaced. For industrial, logistics, data center, and infrastructure sites, this is not an isolated quantity exercise. Ground levels affect building platforms, roads, drainage, utilities, foundations, retaining structures, access, and construction sequencing.

TEBIN develops the analysis within a Building Information Modeling workflow so that earthworks quantities remain connected to the civil design and the assumptions behind it. The result is a measurable view of the site that can be reviewed as the layout and level strategy develop.

Inputs required for a reliable analysis

The calculation begins with two coordinated surfaces: a representation of the existing terrain and a proposed design surface. The existing surface is normally developed from current topographical survey information. The proposed surface reflects the intended platforms, roads, falls, landscape zones, and other designed levels.

The general arrangement model provides the spatial context. It identifies buildings, technical areas, access routes, utility corridors, and the boundaries within which quantities are calculated. Geotechnical information adds a separate layer by identifying ground conditions that may require soil replacement or other treatment.

These inputs must not be treated as interchangeable. A terrain comparison can calculate geometric cut and fill, but it cannot determine unsuitable soil by itself. Soil replacement zones and depths require geotechnical recommendations and clearly recorded assumptions.

From terrain surfaces to earthworks quantities

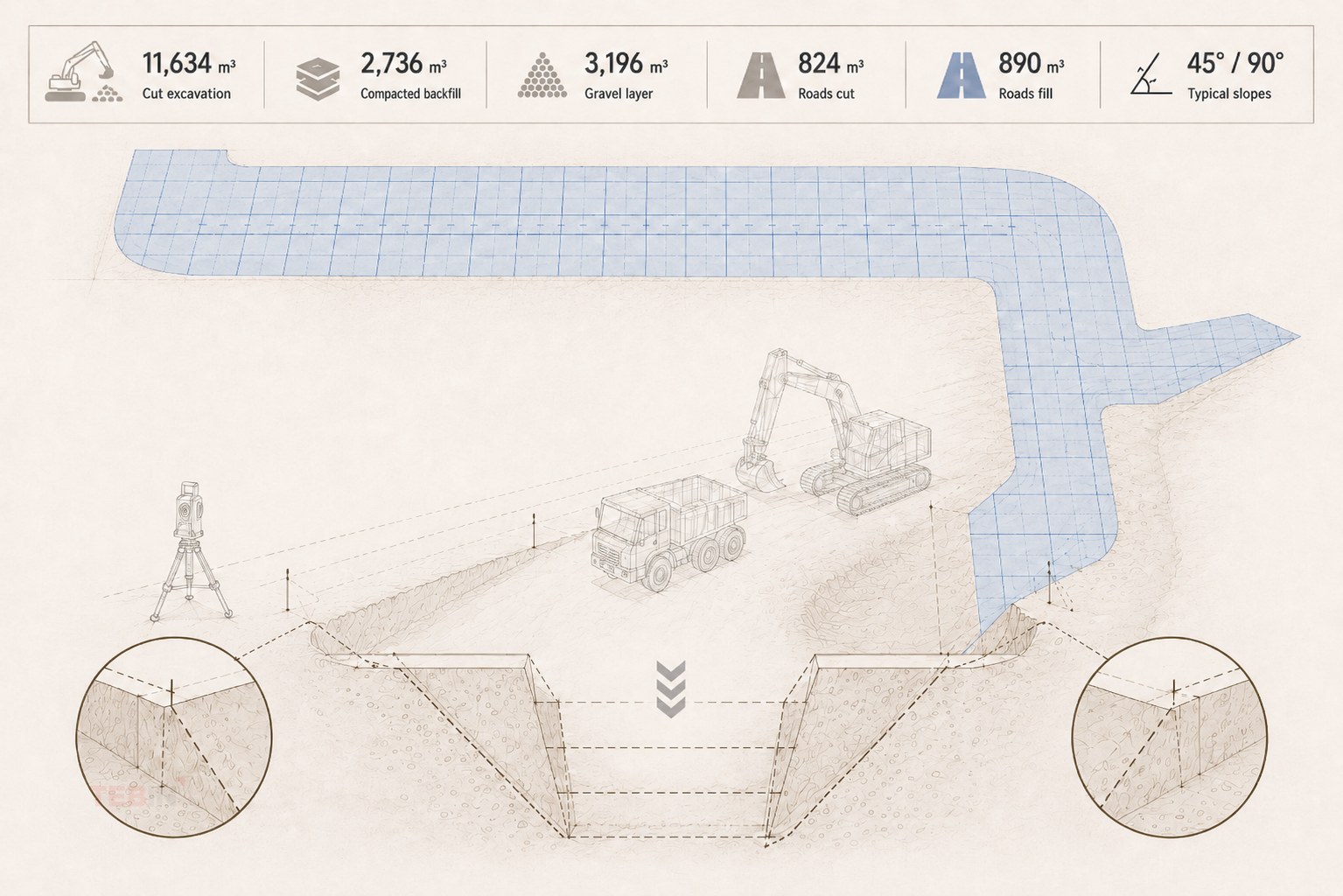

Once the existing and proposed surfaces are coordinated, the model compares their elevations across the defined area. Positive and negative differences become fill and cut zones, from which volumes can be scheduled.

The analysis can provide:

• mapped excavation and fill areas
• preliminary or detailed cut and fill volumes
• separately identified soil replacement quantities where geotechnical input is available
• level references for buildings, roads, utilities, and external works
• comparisons between alternative grading strategies

The level of confidence depends on the source information. Early concept quantities may be suitable for comparing options, while construction-stage quantities require more developed geometry, verified survey data, agreed boundaries, and documented calculation rules. Presenting a volume without its basis would create false precision.

Coordination across the site

Earthworks decisions propagate through multiple disciplines. Lowering a platform may reduce fill but change drainage falls, utility cover, ramp gradients, retaining requirements, or the relationship between external levels and building entrances. Raising it may improve one interface while increasing imported material elsewhere.

Keeping the terrain model connected to the wider design allows these effects to be reviewed together. Civil, architectural, structural, building systems, and landscape information can be checked against the same level strategy rather than coordinated through separate two-dimensional drawings.

This is particularly important where buried utilities cross roads or building zones. Proposed levels influence cover depth, trench geometry, access to chambers, and interfaces with foundations. Resolving the levels early gives each discipline a clearer basis for its own design.

Using the analysis to compare design options

A cut and fill model does not select the best solution automatically. It makes the consequences of each option more visible. The project team can compare grading strategies, review where material movements are concentrated, and identify areas where a small level change has a disproportionate effect on quantities or interfaces.

Visual cut and fill maps also make the calculation easier to review than a volume table alone. Quantity schedules show how much material is involved; the model shows where it occurs and which design elements are affected.

Scope and limitations

The analysis supports design coordination and quantity planning, but it does not replace geotechnical investigation, contractor earthworks methodology, temporary works design, survey verification, or on-site measurement. Bulking, compaction, material suitability, haul routes, stockpiling, and construction tolerances must be addressed according to the project stage and the responsibilities of the relevant parties.

TEBIN's role is to connect existing terrain, proposed levels, geotechnical input, and model-based quantities within a coordinated civil design process. Keeping those inputs and assumptions traceable gives clients, designers, and construction teams a clearer technical basis for the decisions that shape the site.
