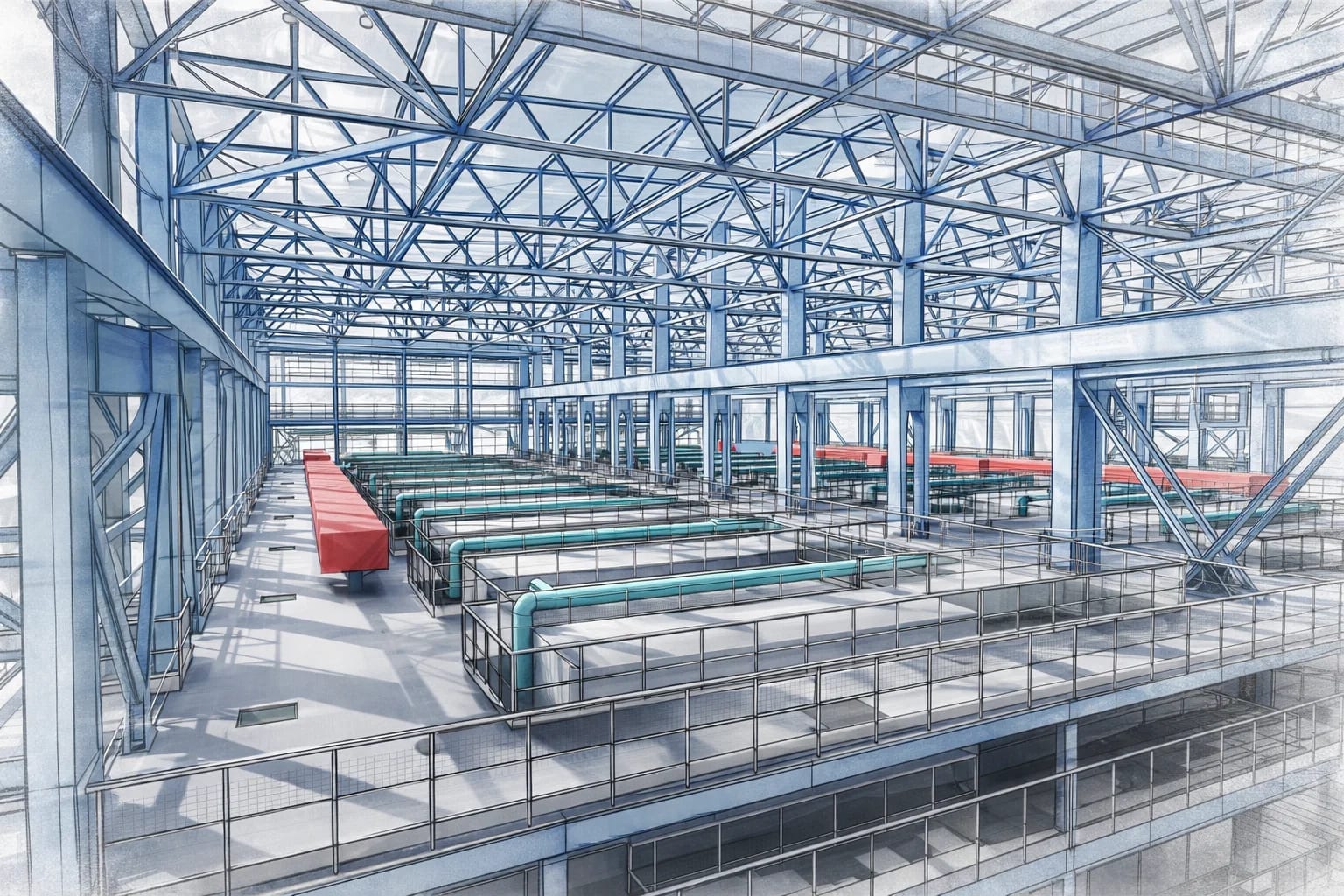

Civil and Structural Design: An Integrated Digital Workflow from First Load to Final Shop Drawing

Civil and structural design and engineering — commonly abbreviated CSA — covers the analysis, modelling, and detailing of a building's structure and the ground works that support it. Structure calculated, modelled, quantified, and detailed within one coordinated environment is the starting point for integrated CSA delivery. It is also the point at which most conventional structural workflows fail.

Why does the conventional structural workflow break down?

The typical approach to structural engineering is sequential: calculate, then model, then draw, then detail, then coordinate with other disciplines. Each step is commonly handled by a different tool, and often by a different team member, with the output of one step exported or re-entered into the next. At every handoff there is an opportunity for something to change without the rest of the workflow knowing about it. A load assumption gets refined after the model has already been built against the earlier value. A reinforcement detail changes during shop drawing production without the quantities being regenerated. The structural model and the construction documentation quietly diverge, and nobody notices until the discrepancy surfaces on site or during fabrication.

The sequential model also makes multi-discipline coordination harder than it needs to be. If structural design is finished before MEP and architecture see it in detail, every clash they find afterward becomes a structural revision rather than a design adjustment made while the model was still open.

Running the full workflow in one environment

An integrated CSA workflow keeps structural analysis, modelling, and documentation inside a single environment from the first load assumption through to the final fabrication-ready shop drawing, so that a change at any stage propagates rather than has to be manually reconciled.

Structural analysis in this workflow covers finite element method (FEM) computation, global stability checks, phased load sequences for staged construction, and load scenarios derived from actual project conditions rather than generic assumptions. BIM modelling then captures the structure itself — underground works, steel frames, and prefabricated elements — at the same level of detail the analysis assumed. Where reinforcement is required, it is modelled as physical geometry rather than noted as a callout, so that what the drawings show is what the model actually contains.

Quantities and bills of materials are generated directly from that model rather than counted separately, which removes one of the most common sources of disagreement between design intent and procurement. Drawings for basic design, detail design, and fabrication-ready shop drawings for both steel and reinforced concrete are produced from the same model, rather than redrawn at each design stage. Because every drawing stage references the same underlying geometry, a change made for one purpose — adjusting a beam depth to resolve a clash, for example — carries forward automatically into the quantities and shop drawings that depend on it, instead of requiring someone to remember to update each downstream document by hand.

Coordination as a continuous process, not a gate

Coordination with MEP and architecture runs throughout the workflow rather than at a single review milestone. Structural elements that interact with ductwork, cable routing, or architectural finishes are checked against those disciplines as the model develops, which means a structural change made for one reason can be checked for its effect on the other disciplines immediately, instead of after the next scheduled coordination meeting.

Outcome and what this approach does not replace

The practical result is documentation that stays consistent with the analysis behind it: drawings, quantities, and shop drawings that all trace back to the same model and the same load assumptions, rather than to separate exports that can drift apart over time. That consistency is what reduces — though does not eliminate — the rework that comes from late-discovered discrepancies between calculation, model, and drawing.

An integrated digital workflow does not remove the need for engineering judgment at each stage, and it does not substitute for site supervision, fabrication tolerances, or construction sequencing decisions, which remain the contractor's responsibility once the documentation is issued. What it changes is where effort goes: less time reconciling outputs that should already agree, more time on the engineering decisions that actually require it. Structural analysis, BIM modelling, reinforcement detailing, bills of materials, basic and detail design, shop drawings, and multi-discipline coordination become one continuous process instead of seven separate handoffs. The model is not a deliverable produced at the end of the process. It is the process.
